APC Easy UPS On-Line SRV6KRIRK יחידת גיבוי אל פסק





APC Easy UPS SRV6KRIRK – אל-פסק אונליין בתצורת Rackmount להגנה מירבית

ה-APC Easy UPS SRV6KRIRK הוא אל-פסק אונליין (Double Conversion) בהספק 6kVA / 6kW, המיועד להתקנה בארון תקשורת (3U Rackmount) ומספק הגנה אמינה ורציפה לשרתים, מערכות אחסון, ציוד תקשורת וציוד קריטי אחר.

מפרט טכני עיקרי:

• טכנולוגיה: UPS אונליין (Double Conversion) עם אפס זמן מעבר
• תצורה: התקנה בארון תקשורת (3U Rackmount), כולל Rail Kit
• הספק: 6,000VA / 6,000W – מתאים לציוד קריטי עתיר הספק
• מתח כניסה: 230V (טווח הפעלה רחב: 110V - 300V)
• מתח יציאה: 230V ±1%, סינוס טהור לאספקת חשמל יציבה
• סוללה: פנימית נטענת, זמן גיבוי משתנה בהתאם לעומס
• חיבורים:

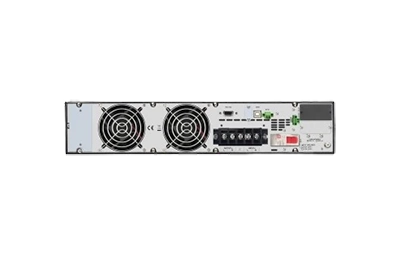

  • יציאה בחיבור חיווט ישיר (Hard-Wired 3Wire 1P+N+E)
• תצוגת LCD: מציגה נתונים בזמן אמת – מתח, עומס, מצב סוללה והתראות
• חריץ לניהול חכם: תומך בכרטיס SNMP לניהול ובקרה מרחוק
• רעש עבודה: ≤55dB (מתאים לחדרי שרתים)
• הגנות: הגנה מפני עומס יתר, קצר חשמלי והפרעות ברשת החשמל
• מידות: 438 מ"מ (ר) × 173 מ"מ (ג) × 710 מ"מ (ע)
• משקל: 61 ק"ג

פתרון מתקדם להגנה מקסימלית על שרתים, מערכות תקשורת וציוד קריטי בתצורת Rackmount.



Double conversion on-line topology

Guarantees a consistently high level of power quality. Any disturbances on the distribution waveform are regenerated via the zero transfer time AC to DC then DC to AC conversion process. The battery is only used as a back-up source.

ECO Mode

Operating mode that by-passes unused electrical components in good power conditions to achieve high operating efficiency without sacrificing protection.

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Pure sine wave output on battery

Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Safety-agency approved

Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Allows the user to manage the UPS functions, schedule automatic shutdown and monitor the power grid occurrences through an interactive interface that ensures an easy and intuitive monitoring.

Management Software

High efficiency

High efficiency rates that remain stable even at lower operating power levels

Input power factor correction

Minimizes installation costs by enabling the use of smaller generators and cabling.

Intuitive LCD interface

Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

Management Software

Allows you to easily monitor your utility power and manage your UPS.

Manageability

LED Indicators

Provide easy-to-read status of the unit and utility power conditions.

Network manageable

Most models provide remote power management options of the UPS over the network. Many do not have NMC embedded.

Intelligent Card Slot

Customize UPS capabilities with management cards.

Serial connectivity

Provides management of the UPS via a serial port.

LCD graphics display

Text and mimic diagrams that display modes of operation, system parameters and alarms.

Serviceability

Audible alarms

Provides notification of changing utility power and UPS power conditions

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Predictive failure notification.

Provides early-warning fault analysis ensuring proactive component replacement.



Technical Specifications

Max Configurable Power (Watts)

6.0kWatts / 6.0kVA

Output Voltage Note

Configurable for 220 : 230 or 240 nominal output voltage

Efficiency at Full Load

94.0 %

Output Voltage Distortion

1 %

Output Frequency (sync to mains)

50/60 Hz +/- 3 Hz Sync to mains

Other Output Voltages

220 V, 240 V

Load Crest Factor

3 : 1

Topology

Double conversion online

Waveform type

Sine wave

Bypass

Internal bypass (automatic and manual)

Input

Input frequency

40 - 70 Hz Auto sensing

Input voltage range for main operations

110 - 300 60 % load, 176 - 300 Full loadV

Efficiency at Full Load

94.0 %

Other Input Voltages

220 V, 240 V

Batteries & Runtime

Battery type

Lead-acid battery

Typical recharge time

4hour(s)

Nominal Battery Voltage

192 V

Expected Battery Life (years)

3 - 5

Battery Charge Power (Watts)

235 Watts

Runtime

View Runtime Graph

Efficiency

View Efficiency Graph

Communications & Management

Interface Port(s)

DB-9 RS-232, USB

Control panel

Multifunction LCD status and control console

Emergency Power Off (EPO)

Yes

Available SmartSlot™ Interface Quantity

1

Surge Protection and Filtering

Surge energy rating

600Joules

Physical

Maximum Height

173MM, 17.3CM

Maximum Width

438MM, 43.8CM

Maximum Depth

710MM, 71.0CM

Net Weight

61.0KG

Shipping weight

71.0KG

Shipping Height

1232MM, 123.19CM

Shipping Width

836MM, 83.6CM

Shipping Depth

600MM, 60.0CM

Color

Black

Environmental

Operating Temperature

0 - 40 °C

Operating Relative Humidity

0 - 95 (Non-condensing) %

Operating Elevation

0 - 3000meters

Storage Temperature

-15 - 60 °C

Storage Relative Humidity

0 - 95 (Non-condensing) %

Storage Elevation

0 - 15000meters

Audible noise at 1 meter from surface of unit

55.0dBA

Online thermal dissipation

1172.0BTU/hr

Protection Class

IP20

Conformance

Approvals

CE, EAC, TISI, UKCA

Standard warranty

2 years repair or replace



 יבואן רשמי סי-דאטה, שנתיים אחריות
