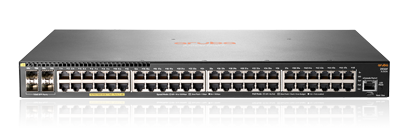

Aruba 2930F 48G PoE+ 4SFP+ Switch JL256A מתג PoE+ מנוהל 48 פורטים





מפרט טכני

Differentiator Popular Aruba 52-port Gig + 10G access switch with 370 Watts PoE+ power.
This model has 48x 10/100/1000 PoE+ ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

Power consumption 459 W (maximum)

Heat dissipation 293.0 BTU/hr (309.1 kJ/hr)

Input voltage 100 - 127 / 200 - 240 VAC, rated

Ports (48) RJ-45 autosensing 10/100/1000 PoE+ ports
(4) SFP+ 1/10GbE ports
PHY-less

Latency 1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs

Switching capacity 176 Gbps

Throughput up to 112 Mpps

Memory and processor Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC

PoE capability 370 W PoE+

Management features Aruba AirWave
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Warranty Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Weight 4.46 kg (9.83 lb)

Dimensions 4.39 x 44.25 x 30.42 cm (1.73 x 17.42 x 11.98 in)
