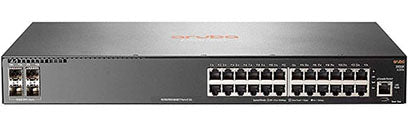

Aruba 2930F 24G 4SFP+ Switch JL253A מתג מנוהל 24 פורטים





 מפרט טכני

Differentiator Popular Aruba 28-port Gig + 10G access switch.
This model has 24x 10/100/1000 ports and 4x 10G / 1G SFP+ transceiver slots for uplink connectivity.

Power consumption 29.3 W (maximum)

Heat dissipation 100 BTU/hr (105.5 kJ/hr)

Input voltage 100 - 127 / 200 - 240 VAC, rated

Ports (24) RJ-45 autosensing 10/100/1000 ports
(4) SFP+ 1/10GbE ports
PHY-less

Latency 1000 Mb Latency: < 3.8 µs
10 Gbps Latency: < 1.6 µs

Switching capacity 128 Gbps

Throughput up to 95.2 Mpps

Memory and processor Dual Core ARM Cortex A9 @ 1016 MHz
1 GB DDR3 SDRAM
Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress
4 GB eMMC

PoE capability 740 W PoE+ maximum, depending on model

Management features Aruba AirWave
Central Network Management
IMC - Intelligent Management Center
Command-line interface
Web browser
Configuration menu
SNMP manager
Telnet
RMON1
FTP
Out-of-band management (serial RS-232C or micro USB)

Warranty Limited Lifetime Warranty: See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase.

Weight 2.41 kg (5.31 lb)

Dimensions 4.39 x 44.25 x 20.02 cm (1.73 x 17.42 x 7.88 in)
