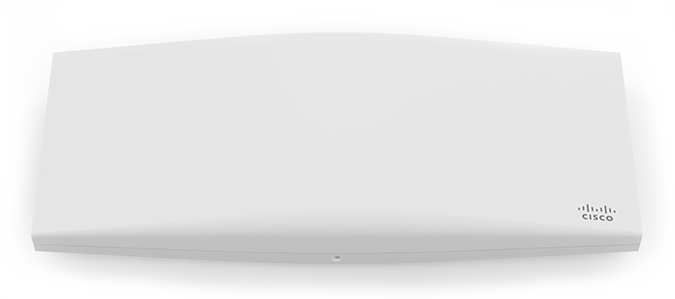

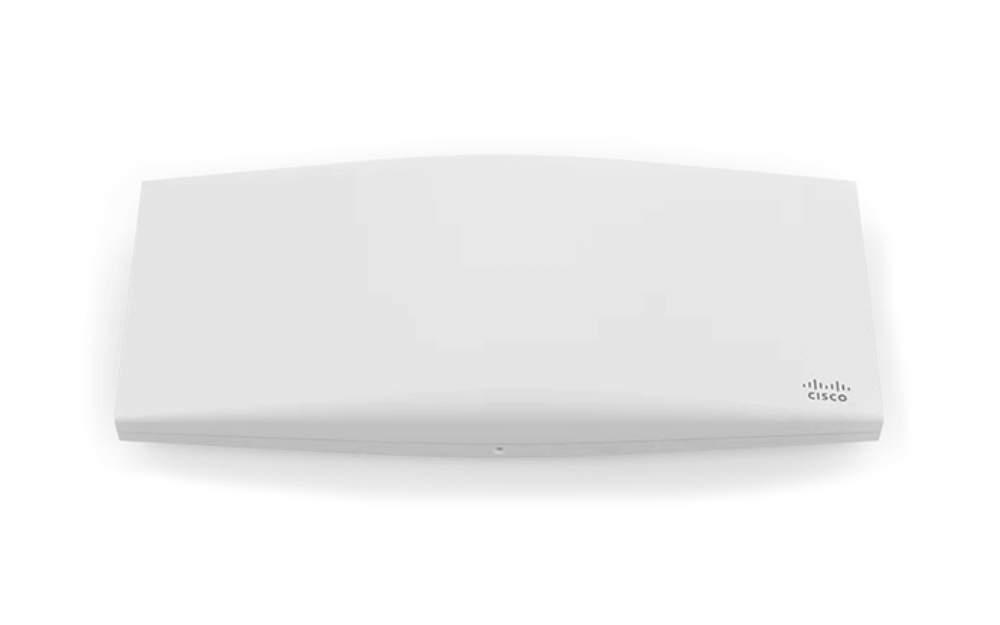

Cisco Meraki MR44 2x2:2 + 4x4:4 802.11ax Wi-Fi 6



מפרט טכני

Radios

• 2.4 GHz 802.11b/g/n/ax client access radio
• 5 GHz 802.11a/n/ac/ax client access radio
• 2.4 GHz & 5 GHz dual-band WIDS/WIPS, spectrum analysis, & location analytics radio
• 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support
• Concurrent operation of all four radios
• Supported frequency bands (country-specific restrictions apply)
• Supported frequency bands (country-specific restrictions apply):
• 2.412-2.484 GHz
• 5.150-5.250 GHz (UNII-1)
• 5.250-5.350 GHZ (UNII-2)
• 5.470-5.600, 5.660-5.725 GHz (UNII-2e)
• 5.725 -5.825 GHz (UNII-3)

Antenna

• Internal Antenna (5.1dBi max gain at 2.4 GHz, 5.9dBi max gain at 5 GHz)

802.11ax Compatible, 802.11ac Wave 2 and 802.11n Capabilities

• DL-OFDMA*, UL-OFDMA*, TWT support*, BSS Coloring*
• 2.4GHz: 2 x 2 multiple input, multiple output (MIMO) with two spatial streams
• 5GHz: 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
• SU-MIMO, UL MU-MIMO* and DL MU-MIMO support
• Maximal ratio combining (MRC) & beamforming
• 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax)
• Up to 1024-QAM on both 2.4 GHz & 5 GHz bands
• Packet aggregation

Power

• Power over Ethernet: 42.5 - 57 V (802.3at) or 37 - 57 V (802.3af) - low power mode*
• Alternative: 12 V DC input
• Power consumption: 30W max (802.3at) or 15W max (802.3af) - low power mode*
• Power over Ethernet injector and DC adapter sold separately

Interfaces

• 1x 100/1000/2.5G BASE-T Ethernet (RJ45)
• 1x DC power connector (5.5 mm x 2.5 mm, center positive)

Mounting

• All standard mounting hardware included
• Desktop, ceiling, and wall mount capable
• Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes
• Bubble level on mounting cradle for accurate horizontal wall mounting

Physical Security

• Two security screw options (included) (13.5 mm long and 2.5 mm diameter and 5 mm head)
• Kensington lock hard point
• Concealed mount plate with anti-tamper cable bay

Environment

• Operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
• Humidity: 5% to 95% non-condensing

Reliability

• Mean Time Between Failure (MTBF): 500,000 hours at +25°C operating temperature

Physical Dimensions

• 12.05” x 5.06” x 1.74” (30.6 cm x 12.84 cm x 4.426 cm), not including desk mount feet or mount plate
• Weight: 26.07 oz (739 g)

Security

• Integrated Layer 7 firewall with mobile device policy management
• Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal
• Flexible guest access with device isolation
• VLAN tagging (802.1q) and tunneling with IPsec VPN
• PCI compliance reporting
• WEP**, WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal*, WPA3 - Enterprise*, WPA3 - Enhanced Open (OWE)*
• EAP-TLS, EAP-TTLS, EAP-MSCHAPv2, EAP-SIM
• TKIP and AES encryption
• Enterprise Mobility Management (EMM) & Mobile Device Management (MDM) integration
• Cisco ISE integration for Guest access and BYOD Posturing

Quality of Service

• Advanced Power Save (U-APSD)
• WMM Access Categories with DSCP and 802.1p support
• Layer 7 application traffic identification and shaping

Mobility

• PMK, OKC, and 802.11r for fast Layer 2 roaming
• Distributed or centralized Layer 3 roaming

Analytics

• Embedded location analytics reporting and device tracking
• Global L7 traffic analytics reporting per network, per device, and per application

LED Indicators

• 1 power/booting/firmware upgrade status

Regulatory

• RoHS
• For additional country-specific regulatory information, please contact Meraki Sales

* software features can be enabled via firmware updates
** feature can be enabled for required networks
