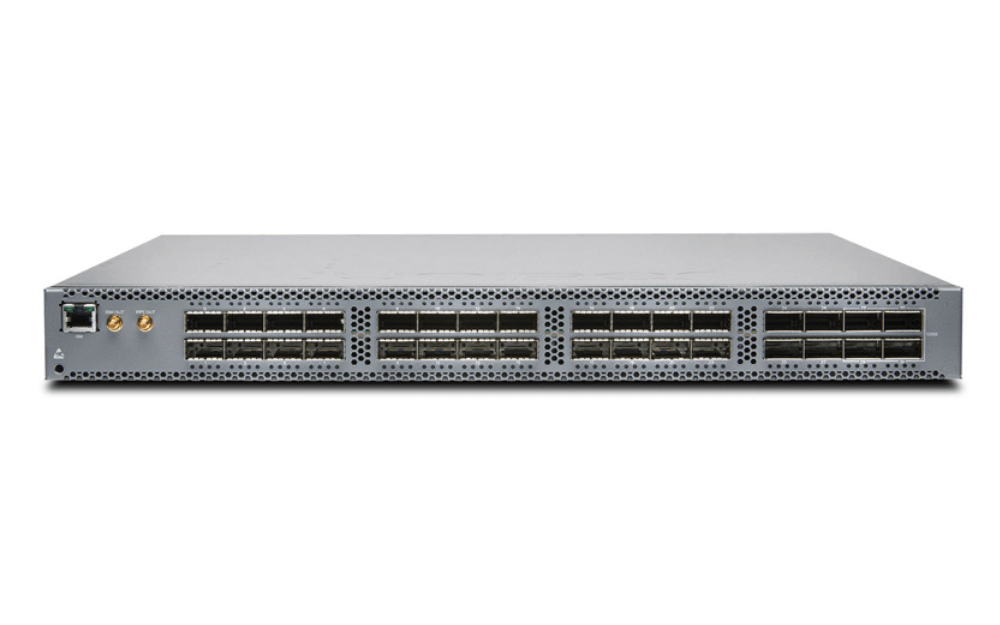

Juniper QFX5110-32Q Switch ג'וניפר מתג 32 פורטים



QFX5110-32Q Very Low-latency, High-Performance 10/40/100GbE Data Center Switches



מפרט טכני

Juniper Networks QFX5110-32Q Specifications
Core Performance
Switching Capacity	2.56 Tbps / 1.44 Bpps
Latency	550 ns
Buffer Capacity	16 MB
Form Factor	Fixed 1 U access / aggregation / leaf
Interface & Density
40GbE QSFP+ Ports	32
100GbE QSFP28 Ports	4
10GbE Density	Up to 96 ports (via breakout cables)
Management Ports	2x SFP fiber or 1x RJ-45 & 1x copper SFP | 1x USB 2.0 | 1x RS-232 console
Scale & Protocol Support
MAC Addresses	288,000
IPv4 Unicast / Multicast	128,000 / 104,000 routes
IPv6 Unicast / Multicast	84,000 / 52,000 routes
VLAN IDs / ARP Entries	4,093 / 48,000
Overlay Management	Contrail, VMware NSX L2/L3 Gateway, VXLAN OVSDB, EVPN-VXLAN
Physical & Power
Dimensions (W x H x D)	17.36 x 1.72 x 20.48 in (44.09 x 4.37 x 52.02 cm)
Weight	24.6 lb (11.16 kg)
Power Draw	Max: 340W | Typical: 290W | Idle: 250W
Cooling	Redundant (N+1) hot-pluggable fans (Front-to-back or Back-to-front)



מק"טים נוספים

QFX5110-32Q-AFI2
Juniper 32 QSFP+/20 QSFP+ QSFP28, back to front air flow, AC

QFX5110-32Q-AFI-T2
Juniper 32 QSFP+/20 QSFP+ QSFP28, back to front air flow, AC, TAA Model

QFX5110-32Q-AFO2
Juniper 32 QSFP+/20 QSFP+ QSFP28, front to back air flow, AC

QFX5110-32Q-AFO-T2
Juniper 32 QSFP+/20 QSFP+ QSFP28, front to back air flow, AC, TAA Model

QFX5110-32Q-D-AFI2
Juniper 32 QSFP+/20 QSFP+ QSFP28, back to front air flow, DC

QFX5110-32Q-D-AFO2
Juniper 32 QSFP+/20 QSFP+ QSFP28, Front to Back air flow, DC
