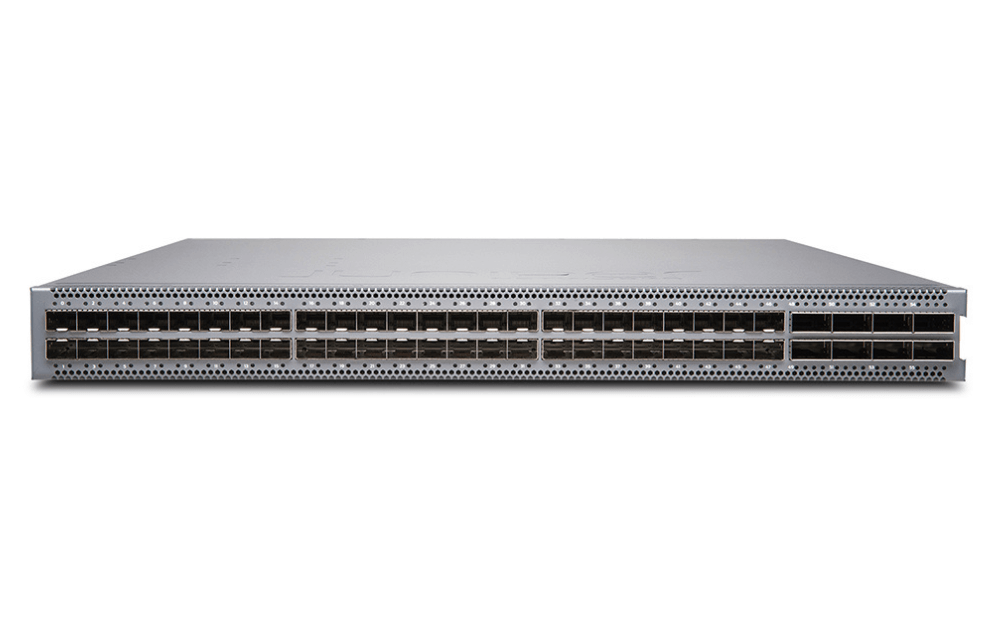

Juniper QFX5120-48Y Switch ג'וניפר מתג 48 פורטים



QFX5120-48Y 48x1/10/25GbE & 8x40/100GbE ports Ethernet Switch for Data Center Leaf or Campus Distribution



מפרט טכני

Juniper Networks QFX5120 Series Specifications
Performance & Capacity
Switching Capacity	48Y / 48YM 4 Tbps / 2 Bpps (bidirectional) 48T 2.16 Tbps / 1 Bpps (bidirectional) 32C 6.4 Tbps / 2 Bpps (bidirectional)
Latency	550 ns
Buffer Capacity	32 MB (Shared)
Interface Densities
QFX5120-48Y / 48YM	48 x 1/10/25GbE SFP28 + 8 x 40/100GbE QSFP28
QFX5120-48T	48 x 1/10GbE RJ-45 (Copper) + 6 x 40/100GbE QSFP28
QFX5120-32C	32 x 40/100GbE QSFP28
Layer 3 & Scalability
MAC Addresses	288,000
IPv4 Routes	351,000 Unicast / 104,000 Multicast
IPv6 Routes	168,000 Unicast / 52,000 Multicast
ARP / VLANs	64,000 ARP entries / 4,093 VLAN IDs
Overlay Support	EVPN-VXLAN, VXLAN OVSDB, Contrail Networking
Physical & Power
Power Consumption	48Y 260W Typical / 450W Max 48T 300W Typical / 450W Max 32C 380W Typical / 515W Max 48YM 550W Typical / 650W Max
Weight	21.12 lb (32C) to 24.8 lb (48YM)
Power Supplies	Dual redundant (1+1) hot-pluggable 650 W AC/DC
Cooling	Redundant (N+1) hot-pluggable fans; Front-to-back or Back-to-front airflow



מק"טים נוספים

QFX5120-48Y-AFI2
Juniper QFX5120-48Y, airflow in, redundant AC PSUs and FANs Ships with base S/W features

QFX5120-48Y-AFI-T
Juniper 48x25G+8x100G 1U TAA AC PSU side intake and Port side exhaust

QFX5120-48Y-AFO2
Juniper QFX5120-48Y, airflow out, redundant AC PSUs and FANs Ships with base S/W features

QFX5120-48Y-AFO-T
Juniper 48x25G+8x100G 1U TAA AC port side intake and PSU side exhaust

QFX5120-48Y-D-AFI2
Juniper QFX5120-48Y, airflow in, redundant DC PSUs and FANs Ships with base S/W features

QFX5120-48Y-D-AFO2
Juniper QFX5120-48Y, airflow out, redundant DC PSUs and FANs Ships with base S/W features
