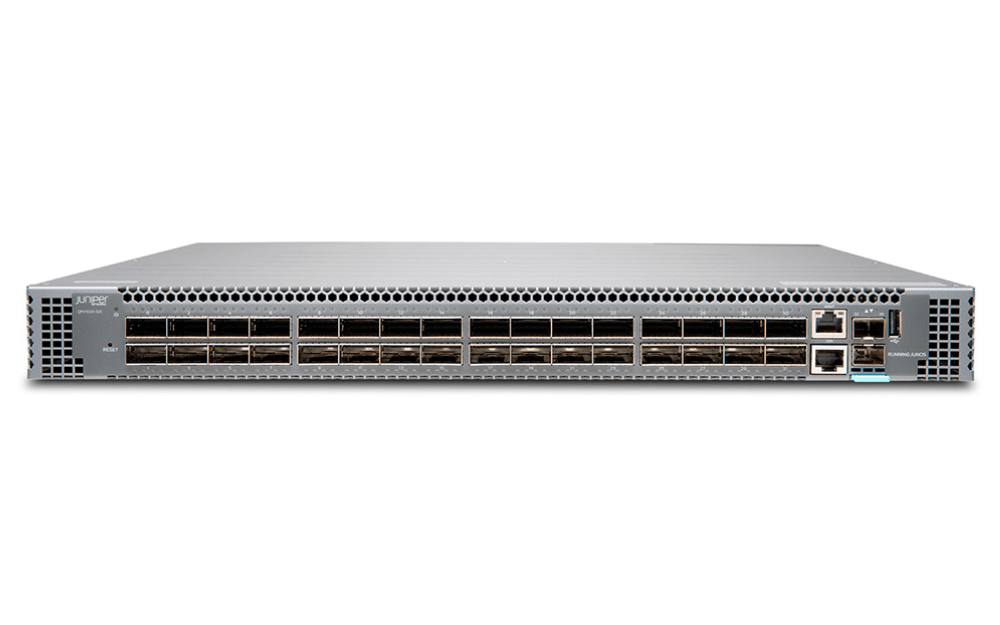

Juniper QFX5130-32CD Switch ג'וניפר מתג 32 פורטים



QFX5130-32CD 32x400GbE & 2x10GbE port Switch



מפרט טכני

Juniper Networks QFX5130-32CD Specifications
Performance & Capacity
Switching Capacity	25.6 Tbps (Bidirectional) / 12.8 Tbps (Unidirectional)
Forwarding Capacity	5.68 Billion packets per second (Bpps)
Latency	630 ns
Packet Buffer	132 MB (Shared, dynamically allocated)
Interface & Port Density
Native 400GbE Ports	32 x 400GbE QSFP56-DD
Breakout Options	Up to 128 x 10/25/100GbE ports Up to 64 x 50/200GbE ports
Management Ports	2 x 10GbE SFP+ (In-band) + 1 x RJ-45 (Console) + 1 x RJ-45 (Mgmt)
Layer 3 & Software Scale
MAC Addresses	160,000
IPv4 Routes	1.24 Million (LPM) / 160,000 (Host)
IPv6 Routes	610,000 (LPM) / 80,000 (Host)
ARP / VLANs	32,000 ARP entries / 4,091 VLAN IDs
Operating System	Junos OS Evolved (20.3R1 and later)
Physical & Power
Form Factor	1 U Fixed Configuration
Dimensions (WxHxD)	17.26 x 1.72 x 21.1 in (43.8 x 4.3 x 53.59 cm)
Weight	24.5 lb (11.11 kg) with full PSUs and Fans
Power Consumption	Typical: 730W | Maximum: 973W
Power Supplies	Dual redundant (1+1) hot-pluggable 1600 W AC/DC
Cooling	Redundant (5+1) hot-pluggable fan modules; AFI (Back-to-Front) or AFO (Front-to-Back)



מק"טים נוספים

QFX5130-32CD-AFI
Juniper QFX5130-32CD, 32 x QSFP-DD/QSFP+/QSFP28 ports, Redundant Fans, 2 AC Power Supplies, Back to Front Airflow

QFX5130-32CD-AFO
Juniper QFX5130-32CD, 32 x QSFP-DD/QSFP+/QSFP28 ports, Redundant Fans, 2 AC Power Supplies, Front to Back Airflow
