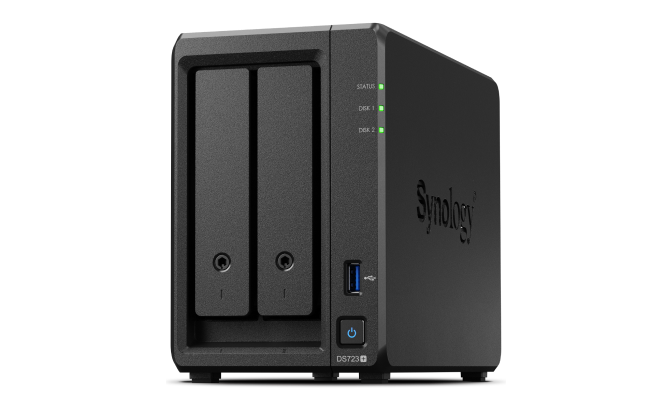

Synology DiskStation DS723+ 2Bay Compact and capable storage for home and small business



 מפרט טכני

CPU

CPU ModelAMD Ryzen R1600CPU Quantity1CPU Core2CPU Architecture64-bitCPU Frequency2.6 (base) / 3.1 (turbo) GHzHardware Encryption Engine

Memory

System Memory2 GB DDR4 ECC SODIMMMemory Module Pre-installed2 GB (2 GB x 1)Total Memory Slots2Maximum Memory Capacity32 GB (16 GB x 2)Notes

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
• For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

Drive Bays2Maximum Drive Bays with Expansion Unit7 (DX517 x 1)M.2 Drive Slots2 (NVMe)Compatible Drive Type* (See all supported drives)

• 3.5" SATA HDD
• 2.5" SATA SSD
• M.2 2280 NVMe SSD

Hot Swappable Drive*Notes

• The hot swappable drive feature is not supported by M.2 SSD slots.
• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

RJ-45 1GbE LAN Port2USB 3.2 Gen 1 Port*1Expansion Port1Expansion Port TypeeSATANotes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion1 x Gen3 x2 network upgrade slot

Appearance

Size (Height x Width x Depth)166 mm x 106 mm x 223 mmWeight1.51 kg

Others

System Fan92 mm x 92 mm x 1 pcsFan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Brightness Adjustable Front LED IndicatorsPower RecoveryNoise Level*20.7 dB(A)Scheduled Power On / OffWake on LAN / WANPower Supply Unit / Adapter65 wattsAC Input Power Voltage100V to 240V ACPower Frequency50/60 Hz, Single PhasePower Consumption21.07 watts (Access)
8.62 watts (HDD Hibernation)British Thermal Unit71.85 BTU/hr (Access)
29.39 BTU/hr (HDD Hibernation)Notes

• For more information on how power consumption is measured, refer to this article.
• Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature0°C to 40°C (32°F to 104°F)Storage Temperature-20°C to 60°C (-5°F to 140°F)Relative Humidity5% to 95% RH

Certification

• FCC
• CE
• BSMI
• VCCI
• RCM
• UKCA
• EAC
• CCC
• KC

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1
• Accessory Pack X 1
• AC Power Adapter X 1
• AC Power Cord X 1
• RJ-45 LAN Cable X 2
• Quick Installation Guide X 1

Optional Accessories

• DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G
• Expansion Units: DX517
• Enterprise Series 3.5" SATA HDD: HAT5300 Series
• Plus Series 3.5" SATA HDD: HAT3300 Series
• Enterprise Series 2.5" SATA SSD: SAT5200 Series
• Enterprise Series M.2 2280 NVMe SSD: SNV3400 Series
• 10GbE Network Upgrade Module: E10G22-T1-Mini
