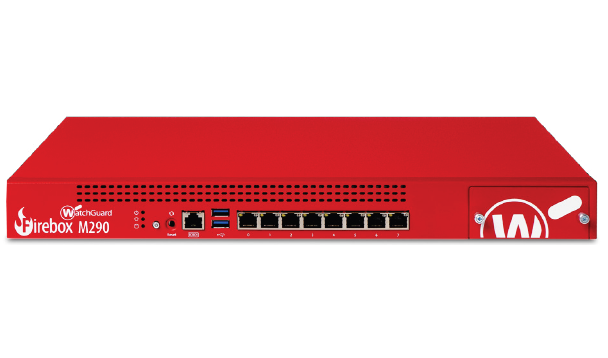

WatchGuard Firebox M290 נתב אבטחה

M290

M390

Firebox

1.18 Gbps

2.4 Gbps

UTM (full scan)

800 Mbps

1.8 Gbps

VPN (IMIX)

696 Mbps

1.32 Gbps

HTTPS (IPS enabled)

1.47 Gbps

3.1 Gbps

AntiVirus

1.3 Gbps

3.3 Gbps

IPS (full scan)

5.8 Gbps

18 Gbps

Firewall (UDP 1518)

2.4 Gbps

5.2 Gbps

VPN (UDP 1518)

8x1 Gb

8x1 Gb

Interfaces 10/100/1000

1 serial/2 USB

1 serial/2 USB

I/O interfaces

3,500,000

4,500,000

Concurrent connections

34,000

98,000

New connections per second

100

250

VLANs

4

4

WSM licenses (incl)

75

150

TDR Host Sensors included

75

250

Branch Office VPN

75

250

Mobile VPN

Stateful packet inspection, deep packet inspection, proxy firewall

Firewall

HTTP, HTTPS, FTP, DNS, TCP/UDP, POP3, SMTP, IMAPS, POP3S and Explicit Proxy

Application proxies

DoS attacks, fragmented & malformed packets, blended threats

Threat protection

Browser Safe Search, Google for Business

Filtering options

KEv2, IPSec, Policy and Route Based Tunnels, TLS hub and spoke

Site to Site VPN

KEv2, IPSec, L2TP, TLS

Remote Access VPN

WatchGuard Cloud & Dimension, Syslog, SNMP v2/v3

Logging and notifications

WatchGuard Cloud includes over 100 pre-defined reports, executive summary and visibility tools

Reporting

Pending: Common Criteria, FIPS 140-3

Security*

NRTL/C, CB

Safety

IPv6 Ready Gold (routing)

Network

WEEE, RoHS, REACH

Hazardous substance control

Multi-WAN failover, dynamic path selection, jitter/loss/latency measurement

SD-WAN

RIP, OSPF, BGP

Dynamic Routing

Active/passive, active/active

High Availability

802.1Q, DSCP, IP Precedence

QoS

Static, DHCP (server, client, relay), PPPoE, DynDNS

IP address assignment

Static, dynamic, 1:1, IPSec traversal, policy-based

NAT

802.3ad dynamic, static, active/backup

Link aggregation

12.08” x 17.24” x 1.73”(307 mm X 438 mm x 44 mm)

12.08” x 17.24” x 1.73”(307 mm X 438 mm x 44 mm)

Product Dimensions

22.71” x 8.14” x 17.44” (588 mm x 648 mm x 200 mm)

22.71” x 8.14” x 17.44” (588 mm x 648 mm x 200 mm)

Shipping Dimensions

11.53 lbs (5.23 kg)

11.53 lbs (5.23 kg)

Shipping Weight

Single PSU -65W90-264VAC~, 1.0A/1.5A, 47-63 Hz

Single PSU -120W90-264VAC~, 2.2A/2.4A, 47-63Hz

Power

110V AC power: 75W at 45°C with 57% fan speed

110V AC power: 76W at45°C with 64% fan speed

Power Consumption

623,087 hours

578,655 hours

MTBF

32° F to 104° F / 0° C to 40° C

Operating Temperature

-40° F to 158° F / -40° C to 70° C

Storage Temperature

5% to 90% non-condensing

Operating Relative Humidity

5% to 90% non-condensing

Storage Relative Humidity

0 to 9,843 ft at 95° F (3,000 m at 35° C)

Operating Altitude

0 to 15,000 ft at 95° F (4,570 m at 35° C)

Storage Altitude
